Cap

We strictly in accordance with the ISO 9001 quality management system for on-site management, has obtained ISO 9001, ISO 14001, ISO 45001, CE, AAA-level credit rating certification, etc. Our products have been inspected and approved by SGS, BV, MOODY, TUBOSCOPE and other international authoritative third-party organizations
1.Raw material inspection: dimension and tolerance check, appearance quality check, mechanical properties testing, weight check and raw materials quality assurance certificate check
2.Semi-finished goods inspection: physical and chemical inspection, leakage magnetism and ultrasonic inspection
3.Finished goods inspection: dimension and tolerance, appearance quality check and mechanical properties testing
4.Inspection before ex-factory: We arrange our QC staff to manufacture’s plant for final quality and packing inspection each time before we deliver goods to port for shipping, and the connected sales staff will be with QC staff to make sure we did everything fully and strictly meet our customers’ requirements.

Contact Us

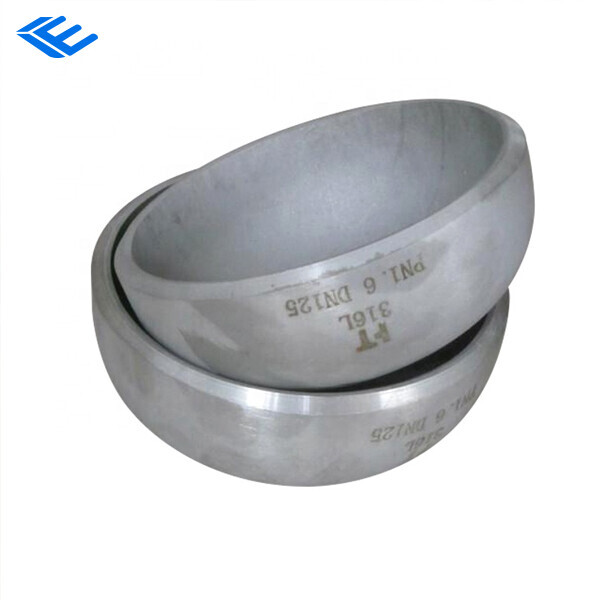

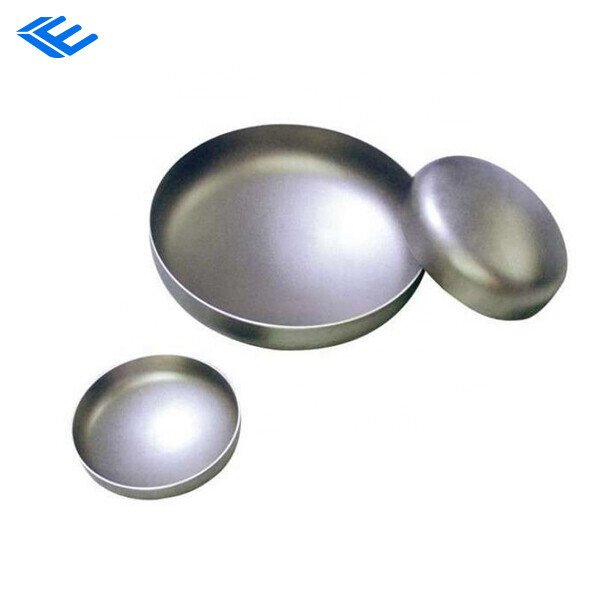

◉ Product Description

ypeName:cap, enc cap, pipe cap, seamless cap , butt welding cap, carbon steel cap(CS cap),

mild steel cap(MS cap), alloy steel cap(AS cap), stainless steel cap(SS cap) Semi Ellipsoidal,

semi ellipsoid cap ,Cap Ellipsoid ,Ellipsoid Cap ,Semi-spherical Head

Size:1/2"-48"/(DN15-DN1200)
Connection: welding
Technic:forged
Varieties:SCH10,SCH20, SGP, STD, SCH40, SCH80, SCH160
Material:
carbon steel: ASTM A234 GR WPB , ST37.2 , ST35.8……
alloy steel: A234 WP5/WP9/WP11/WP22/WP91, A420 WPL6, A860 WHPY 42/52/60/65/70/80……
stainless steel: A403 WP304/TP304 , WP304L/TP304L , WP316/TP316 , WP316L/TP316L, WP321/TP321 , WP310/
WPBA234,,A403-WP316,A403-WP316L,A403-WP317,A403-WP321 etc.

Standard:BS, DIN ,JIS,etc. ANSI B16.9/16.28, ASTM,API 5L, DIN2605/2615/2616,

JIS2311/JIS 2312/JIS2313/ ASME B36.10M---1996,MSS SP43/MSS P75/ DIN2617 /GB-12459/GB-T13401 etc…

Surface treatment:Black rust-proof oil, transparent oil, Shot blasted, black painting, rust-proof oil, transparent oil, galvanizing,, hot galvanizing
Application :petroleum, electricity, chemicals, natural gas, construction, shipbuilding and other fields because of its high pressure, high temperature, etc
Pipe Cap Material Grades:
Stainless Steel Pipe Cap:ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Pipe Cap:ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Pipe Cap:ASTM A420 WPL3, A420 WPL6
Alloy Steel Pipe Cap:ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Pipe Cap:ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462

Nickel Alloy Pipe Cap:ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ),

 UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )


Size







DNNPSODEE1
151月2日21.32525
203月4日26.72525
25133.43838
321 1/442.23838
401 1/248.33838
50260.33844
652 1/2733851
80388.95164
903 1/2101.66476
1004114.36476
1255141.37689
1506168.389102
2008219.1102127
25010273127152
30012323.9152178
35014355.6165191
40016406.4178203
45018457203229
50020508229254
55022558.8254254
60024609.6267305
65026660.4267
70028711.2267
75030762267
80032812.8267
85034863.6267
90036914.4267
95038965.2305
1000401016305
1050421066.8305
1100441117.8343
1150461168.4343
1200481219.2343

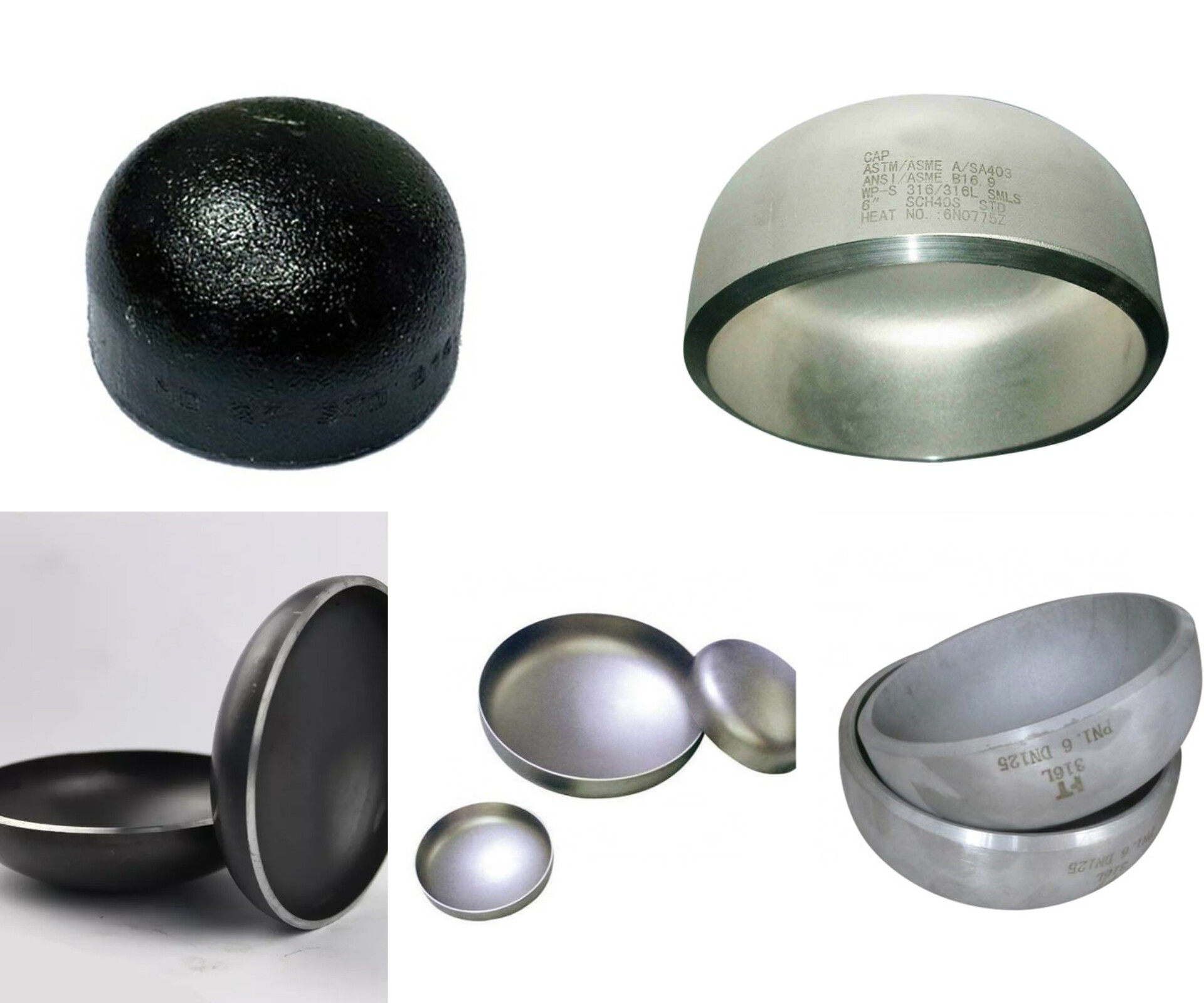

◉ Product Show

下载 - 2024-08-31T103146.687.jpg


◉ Packaging And Shipping

◉ Application

下载 - 2024-08-31T103806.847.jpg

◉ FAQ

Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of pipeline products located in Tianjin,China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.
Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request
